Embedded LAN interface Multipoint Temperature&Humidity data acquisition,2 channels,Support POE supply,support email alarm,can connect waterproof HS10 sensor ,apply Computer room, vegetable greenhouse, drug store ,freezer,1W340G_HS10

$85.50 $67.55

Manufacturer: PCsensor

Stock Level: 385

Product Information
















1.Equipment Introduction:

Model Name :    1W340G

Application fields:  Vegetable greenhouse temperature and humidity detection、storage temperature and humidity detection、industrial environment temperature and humidity detection, etc


1.Device realizes real-time collecting  temperature and humidity data.

2.Software realizes real-time reading environment temperature and humidity, and saves the  data.

3.Software supports the Windows system

4.Standard POE power supply mode, compatible with 802.3 af ;reserve DC 5V mini USB power interface

New Functions !!

(1) 1W340 products newly added Android APP, support all Android phones and tablets. Just download this,



1W340 product Newly add  remote access function , welcome to download the newest software (1W340 V4.0 zip) .

Operating steps: 1. Search Device >> 2. Register Account >>3. Login user >> Set device config >>4. Search network device


Electrical parameters:

1.Working voltage: DC 5V

2.Working current:<170mA

3.Equipment power: < 0.9 W


Factory settings:

(1)IP address: (the user can modify)

(2)The subnet mask: (the user can modify)

(3). The gateway: (the user can modify)

(4). Connection types: TCP (default shall not modify)

(Device supports secondary development, the details please consult the salesman)

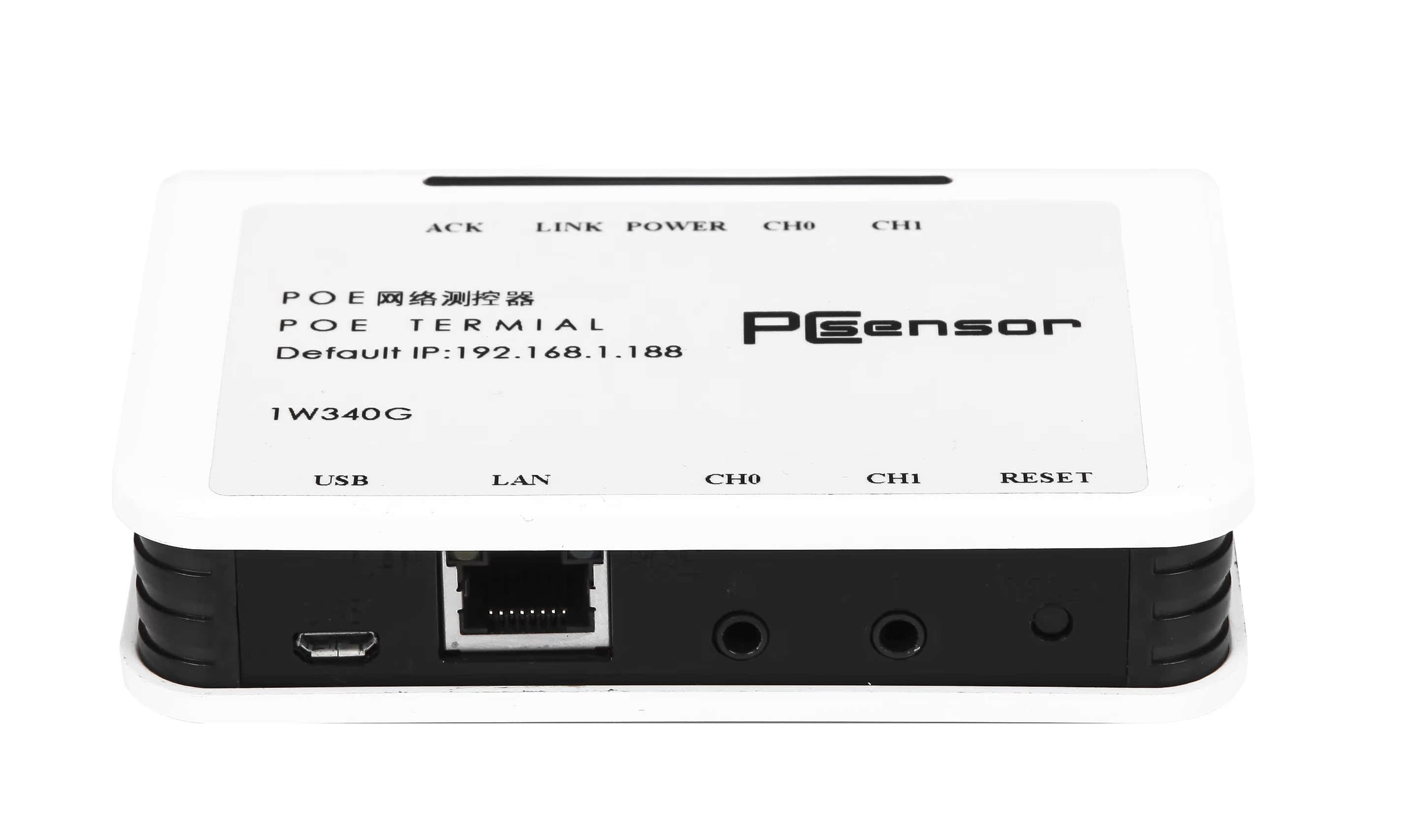

 Equipment appearance:

2.Device Use

Device supports two probes . The device connects the probe with audio port, and connects the switch that support POE with the cable. Then the device would work( Note: You must insert the plug before power-on).

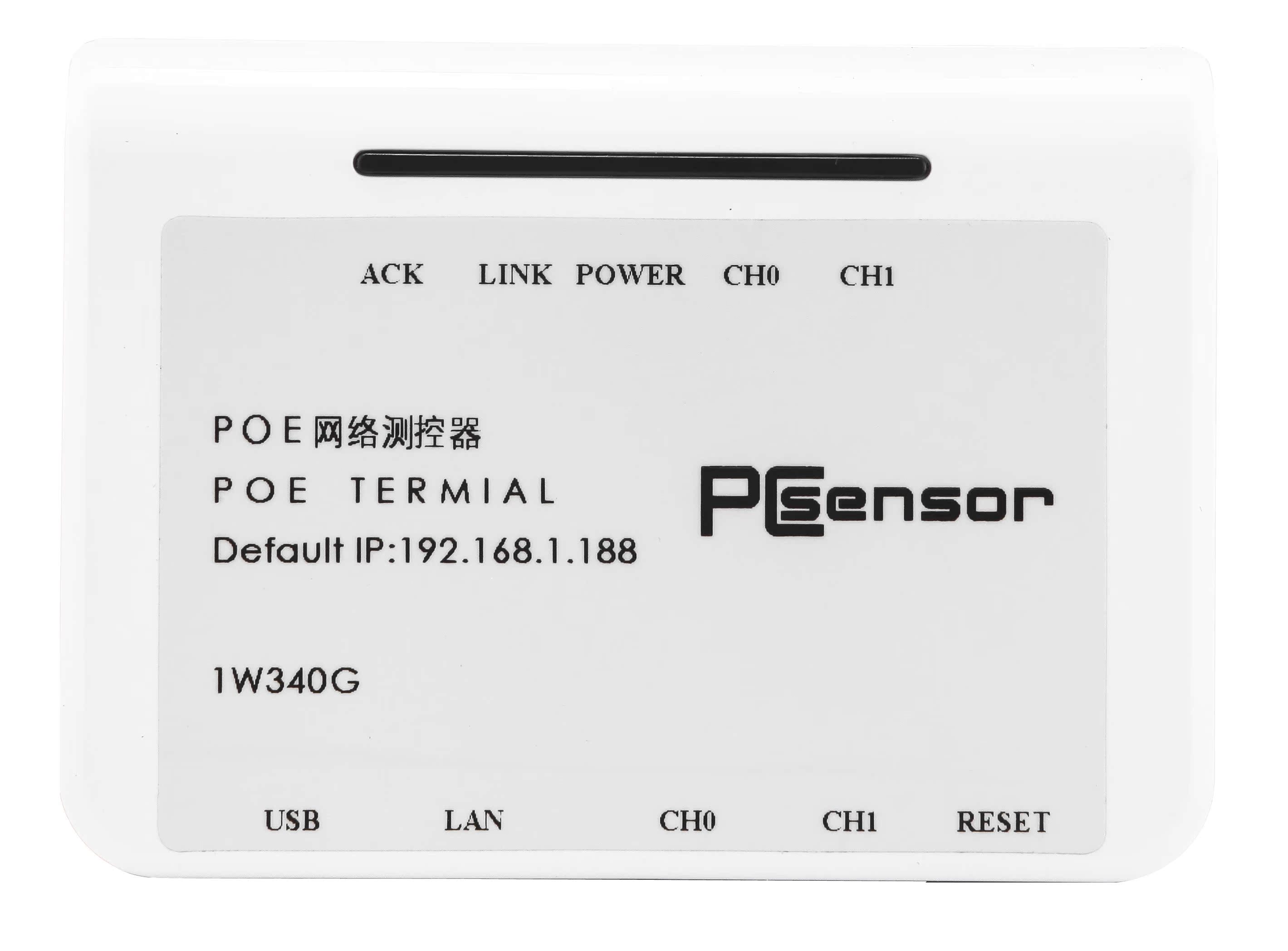

2.1 Panel function

 The front of the device has 5 lights to indicate the working status. On the side are USB interface, LAN port ,CH0&CH1 audio port  and a button to restore factory settings, function as follows:


  • ACK  light flash:    LAN port is sending and receiving data

  •  LINK light on:       network connecting normal

  •  POWER light on :  power supply normal

  •  CH0~CH1 light:    If the device reads normally the light will flash.


  • USB: Power interface, connect DC 5V power

  • LAN POE: LAN port, connect the switch which supports POE, power supply

  • CH0,CH1:Audio port, connect the probe

  • RESET:   Restore  factory settings


2.2 Direct connection

 Connect device to computer with one cable, generally called  direct connection or  point-to-point connection. It makes it easy to visit device, wire and opera.

Note: The device supports POE power supply mode only.

2.2.1 Network Settings

 Factory default IP ( subnet mask (  gateway ( and device must in the same network segment .

Steps as follows:

Step one: "Network Place" -> 'Check the local connection" ->"Local Connection", right click the  "Local Connection"->"Properties"

Step Two"This connection uses the following items" ->"Internet Protocol Version (TCP/IP)"->"Properties"

Step three: Select "Use the following IP address", fill in the subnet mask, default gateway same to the device. Set the IP as, the final data(xxx) of device IP and the computer IP  can not be same (note : xxx don't set 0 or 255),Set up and then click "ok", save.

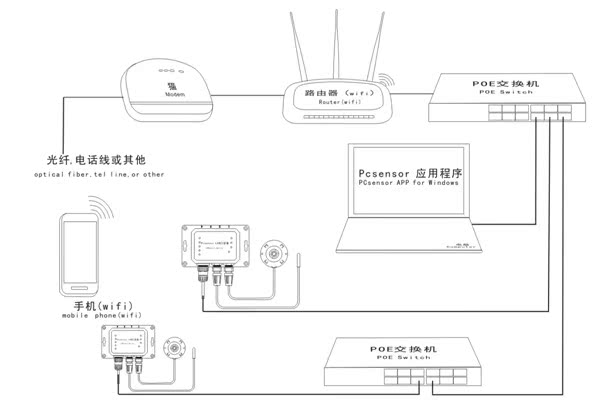

2.3 Networking connection

The device and the computer have only one network port, if the user wants to visit several devices, or use several computers to visit one or more devices, it requires the user to form a network, the user needs to choose the switch supports POE. There must be more switch ports than the devices.



If the computer and the device is not in the same network segment, users need to modify the IP, subnet mask, gateway to fit with current network, please refer to the device software setting

2.4 Restore factory settings

If you forget the parameters or incorrectly set to make it not work, you can press the Reset button on device for 3~5 seconds. It is finished when the LINK and ACK light go out.

3. Data detection

The resolution and precision of the data will be different by different probes. Please refer to the table below

Probe types



           Operating range


Humidity (RH%)














































 4.Software instructions   (Note: Our software only support windows system .)


 4.1. Search probe

Open software will appear the following window, fill in equipment starting the IP address and ending IP address, then ,  software will search the device from starting to end the IP address .(including  all the 1 W340 equipment )

4.2. Real-time temperature

Click on "real-time data” and select IP address what you want to check the equipment.  As follow:

4.3. Log

Choose what you want to see the equipment IP address and read the temperature (As follows).  log default save directory: my document PCsensor 1 W340 V1.3 Data

4.4. Curve

Choose what you want to see the equipment IP address

Click left mouse button under marquee can zoom curve and narrow curve; Click and hold the right mouse button, can move the curve.


4.5. Setting

Click on “Setting” and select “General Setting “. As follows:

Click"Setting" and choose "Device Setting" , choose one IP address, as follow:


Click on the 18 b20, will enter DS18b20 temperature probe to set temperature calibration value.

4.6. MSN remote access to the temperature

MSN users log in, your friends can send related instructions and to obtain the relevant temperature data. When your friends send prompted number 1 to you, he will automatically get the temperature data. Including: real-time temperature, maximum, minimum and average.




4.7. Email function


 Fill-mail message, and save. (Send E-mail request: support for POP3/SMTP services or other ports.) Receiving mail can fill two.

Can realize the following functions:

1, open warning function,  when the alarm is automatically triggered to send a message to the specified mailbox;

2, you can set the time, from time to time, it will send a message to the specified mailbox (recommended);

3, open continuous send, You can send mail to open a row in the specified mailbox (not recommended).


4.8 Help


5. Pack List


W/P body



   CD software

     Paper specification



TX probe:1





TX probe:2





DX probe:1





DX probe:2





HS10 probe:1





HS10 probe:2



Note:All probe line is 1 meter long, need to customize  probe line please contact customer service.

Besides the customer need to provide your own switch supports standard POE (IEE802.3 af)




Product Code: 1W340G_HS10
